18|BX Bandsaw – 3 HP

Experience unmatched power, precision, and control with the Laguna 18|BX Bandsaw. Engineered for serious woodworkers and professionals, this 18-inch bandsaw combines industrial strength with smooth performance. Its robust 3HP motor delivers powerful cutting capacity for resawing thick hardwoods or shaping intricate curves with ease. Laguna’s 18”| BX Bandsaw is made to perform the biggest jobs. Built around a 3HP, 220V motor and using a 145” blade for consistent results, cut after cut. This saw follows the Laguna tradition of reliability established by the Laguna 142/12 and 14 BX models.

Features:

• Maximum cutting power
• Pyramid-shaped spine for reduced vibration and increased rigidity

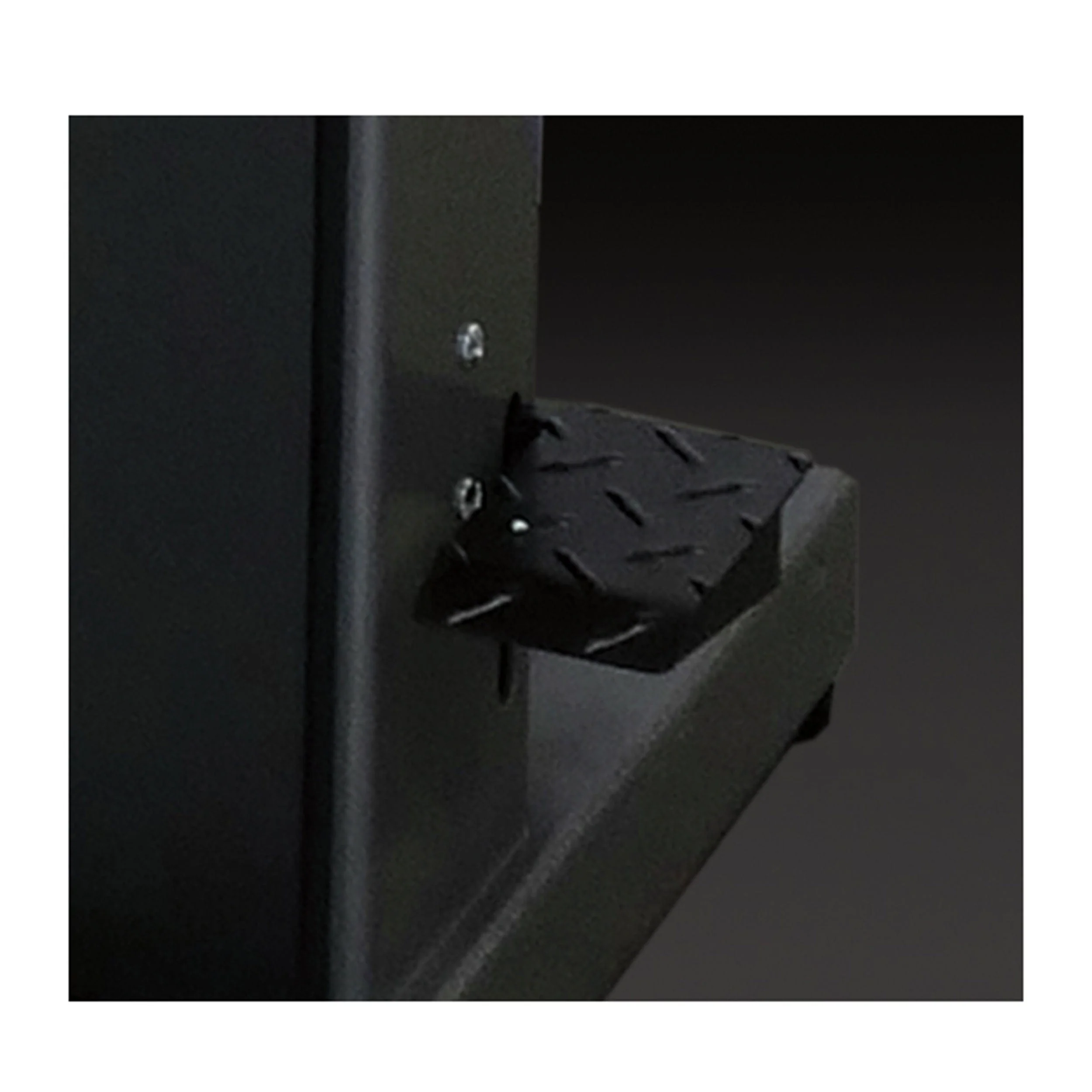

• Foot brake with micro-switch for safe, quick stops
• Variable blade speed for precise control
• Oversized cast iron table for stability and support
• Ceramic blade guides for reduced friction and longer blade life
• Heavy-duty steel frame for industrial durability

Specifications:

• Model MBAND18BX2203
• Motor: 3HP, 220V 1 PH, 12 Amp
• Recommended breaker: 20 Amp
• Magnetic Starter
• Min-Max Blade Width: 1/8” – 1-1/4”
• Resaw capacity: 16”
• Throat: 18”
• Blade length: 145″

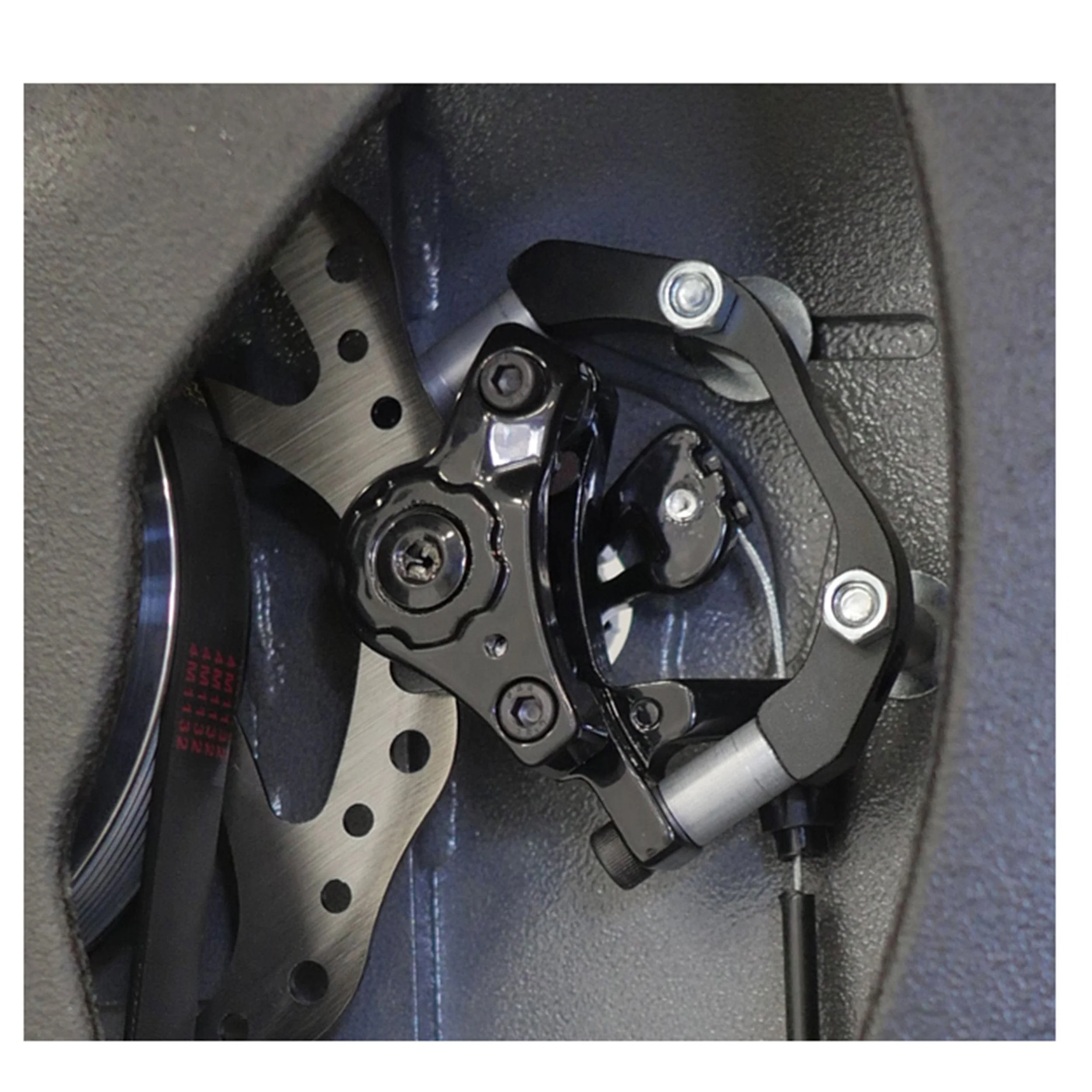

• Disc-brake with micro switch
• 220V Outlet on the back for Light
• Window for tension and tracking
• Magnetic blade tension guide
• Worm gear & pinion upper guide
• 10 Point Laguna ceramic guides
• Flat poly-groove drive belt
• Premium anodized insert with micro adjustment

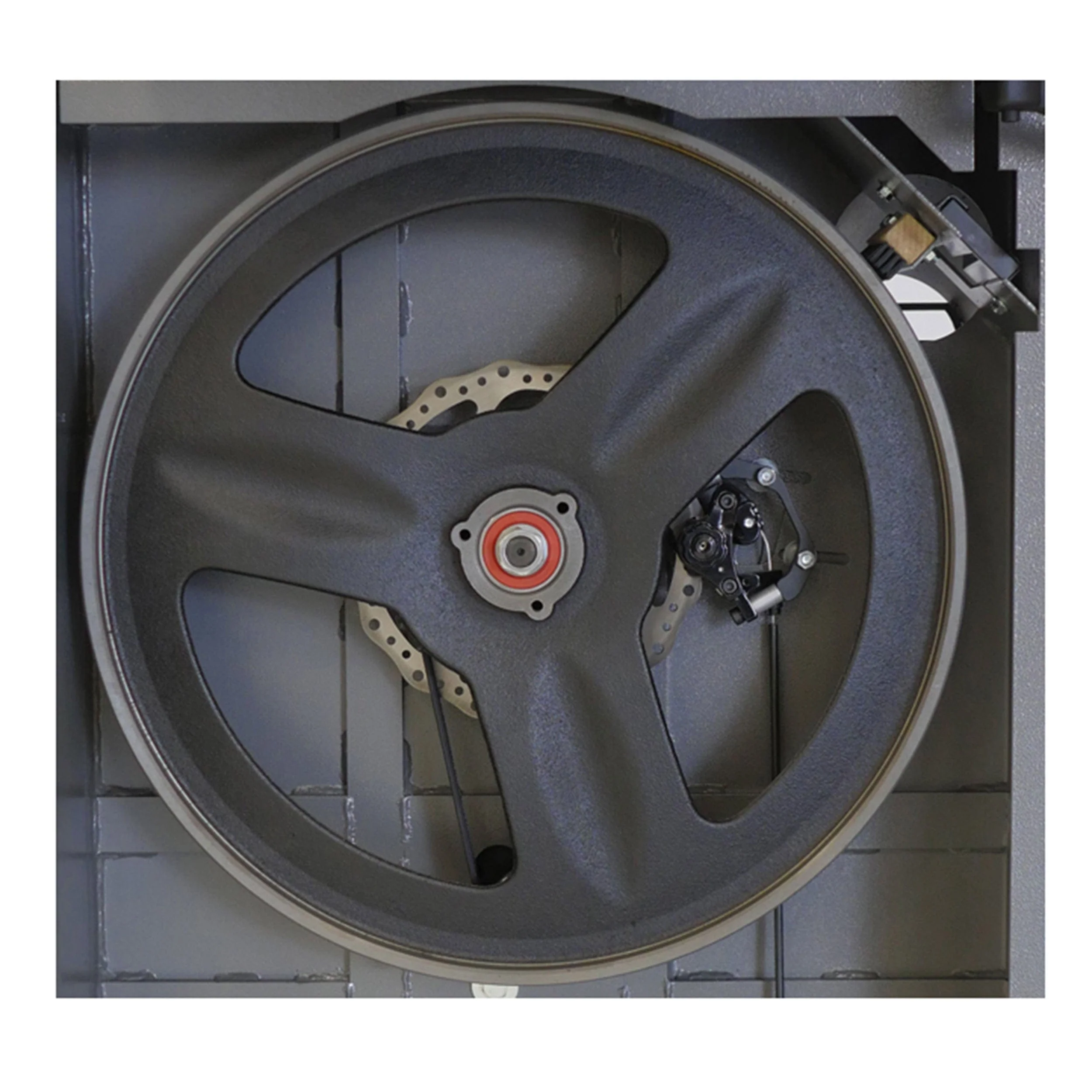

• Dynamically balanced cast iron wheels
• Urethane single piece snap-on-tire
• Cast Table: 20” x 26”
• Table tilt: -6 degree, 45 degree positive
• Quick release tension
• Hi/Low anodized aluminum fence: 22-1/2” x 5-3/4” x ½”
• Table height: 38”
• Dust port: 2” x 4”
• Overall height: 77-3/4”
• Base dimensions: 27” x 20”
• Overall dimensions: 36” x 30”
• Weight: 410; ship weight: 460

What’s Included:

• (1) Laguna 18|BX Bandsaw – 3 HP

Note:

• Optional 18|BX Wheel System and Pro Light System (sold separately) can be used on the Laguna 18BX Bandsaw.
