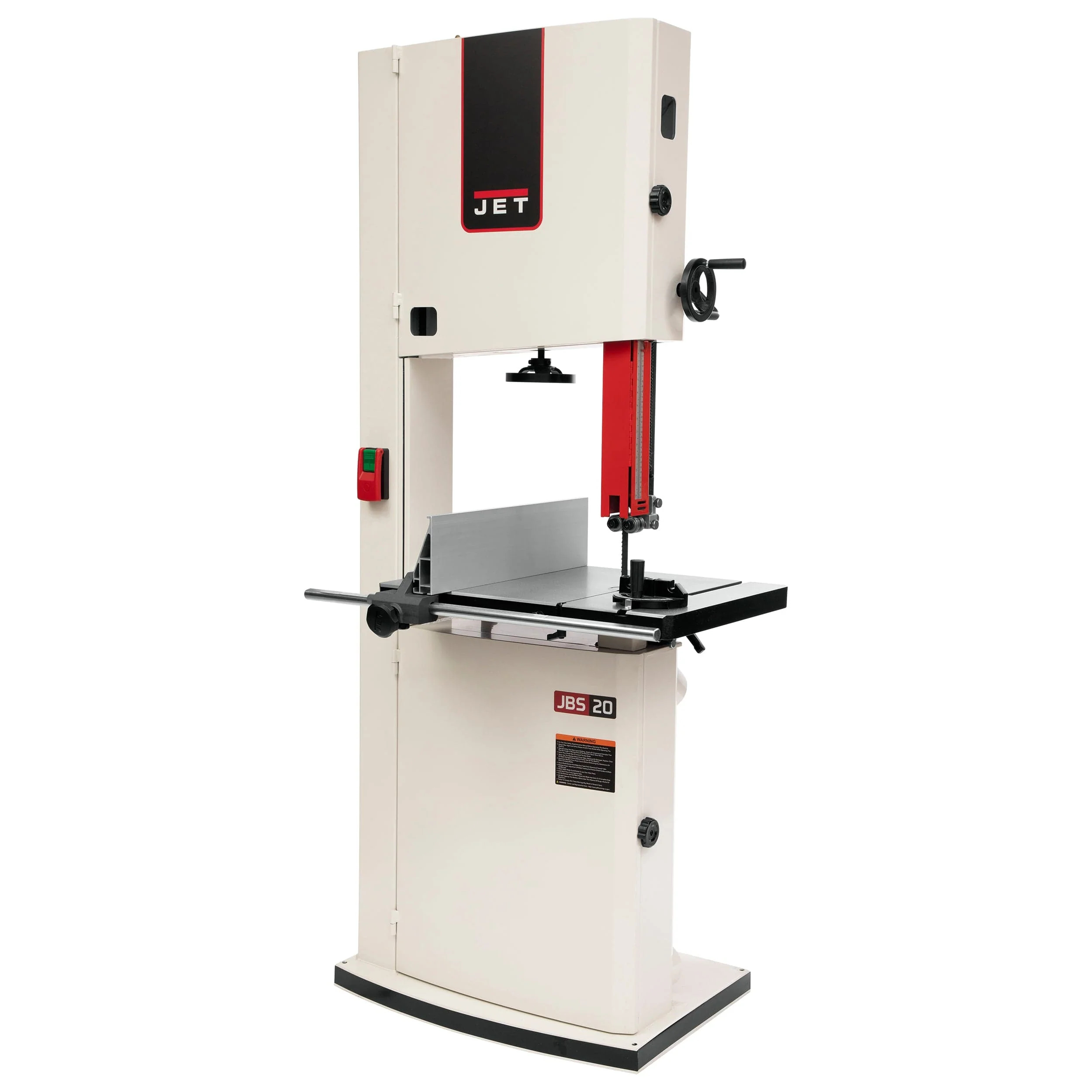

20″ Woodworking Bandsaw – 3 HP 1 Ph 230V – JWBS-20-3

• 16 resaw capacity for cutting large pieces of wood, slicing veneers and cutting book matched panels

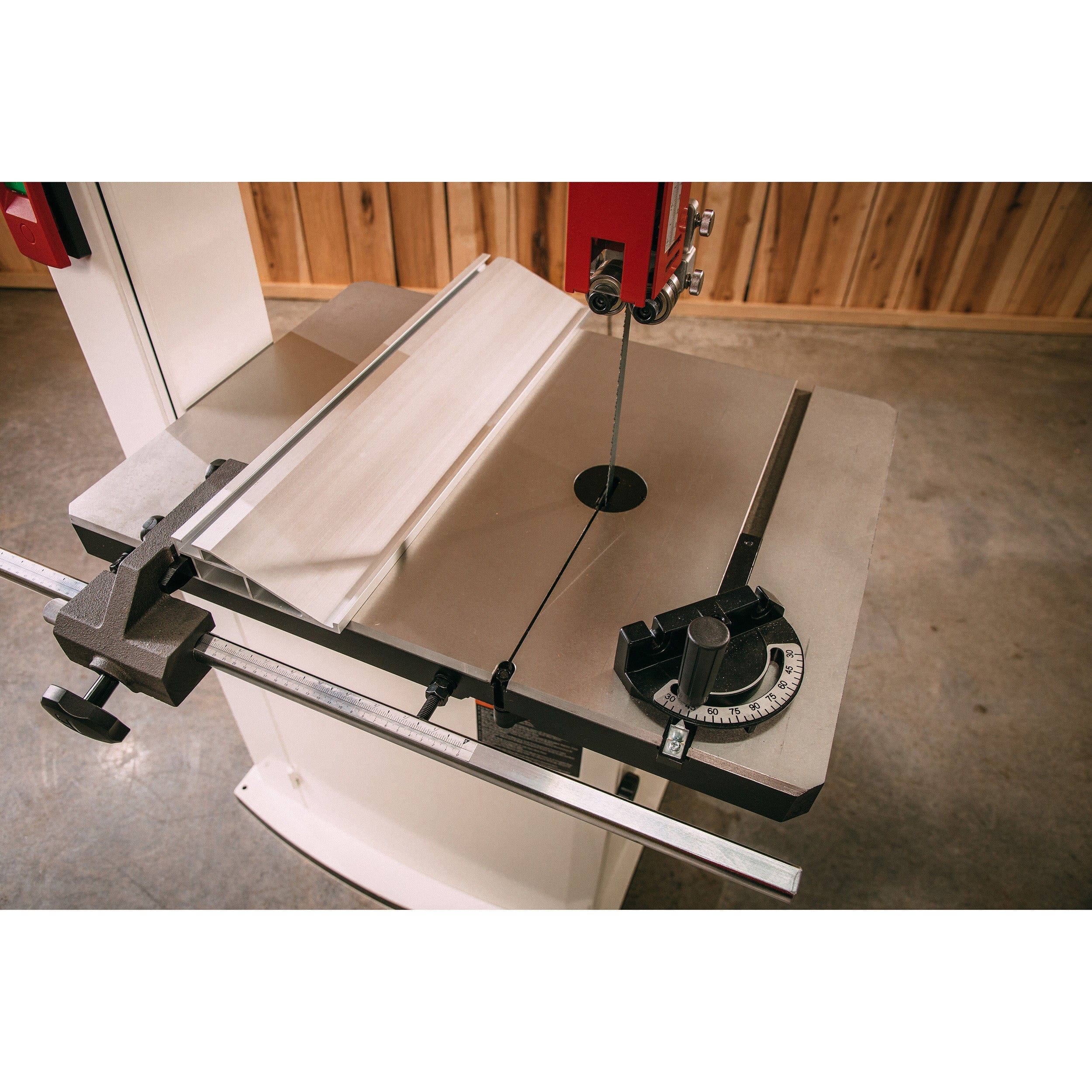

• 27-1/4 x 20″ precision ground cast iron table for added stability and work support
• Fence system features a micro-adjustable, dual-position side plate
• Tool-less, independently adjustable, upper and lower ball bearing guides

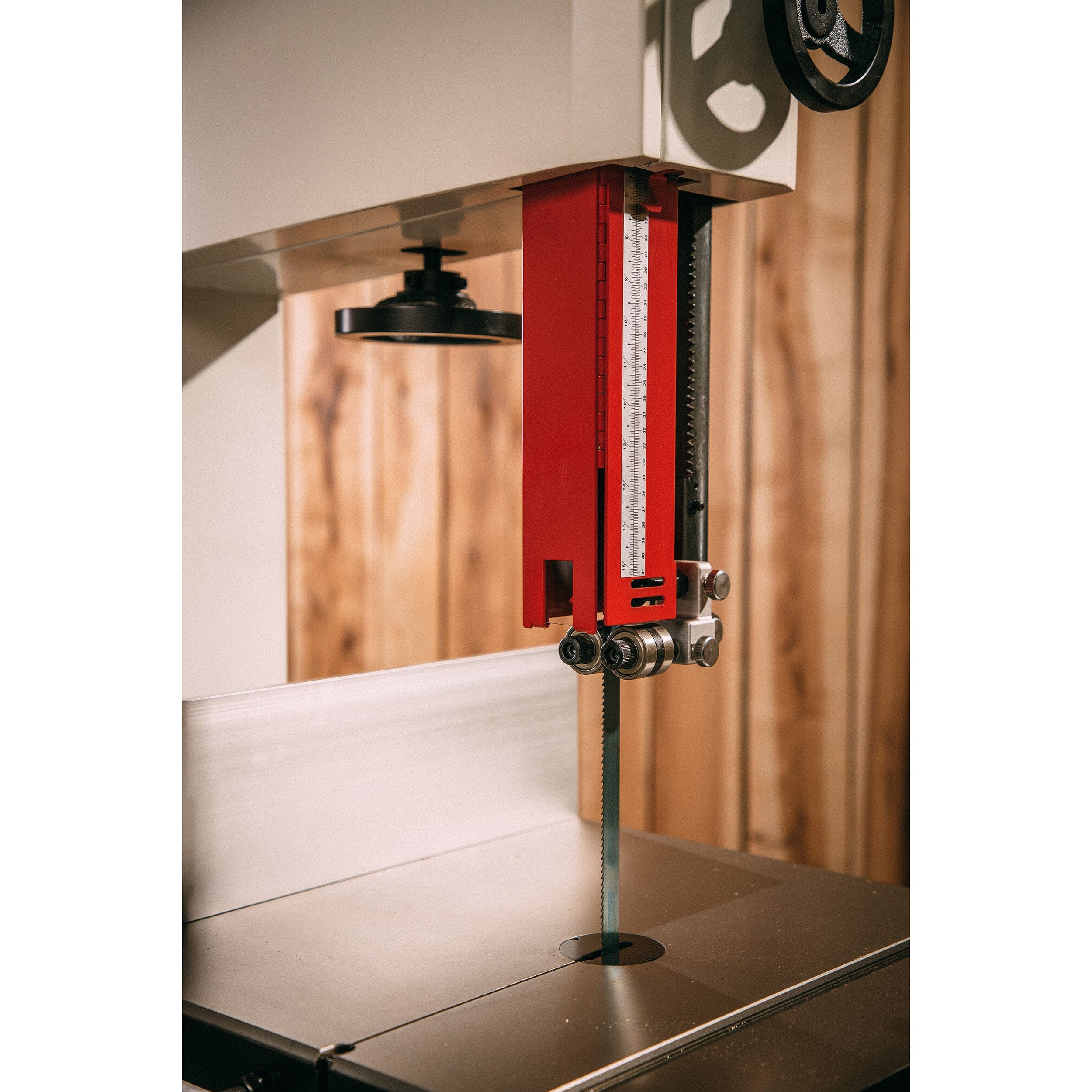

• Rigid, four-sided guide post with rack and pinion adjustment for optimum blade support
• Easy-to-read blade tension scale can be viewed through upper door window
• Single knob adjustment simplifies the blade tracking process
• Blade tracking window provides clear view of blade during tracking

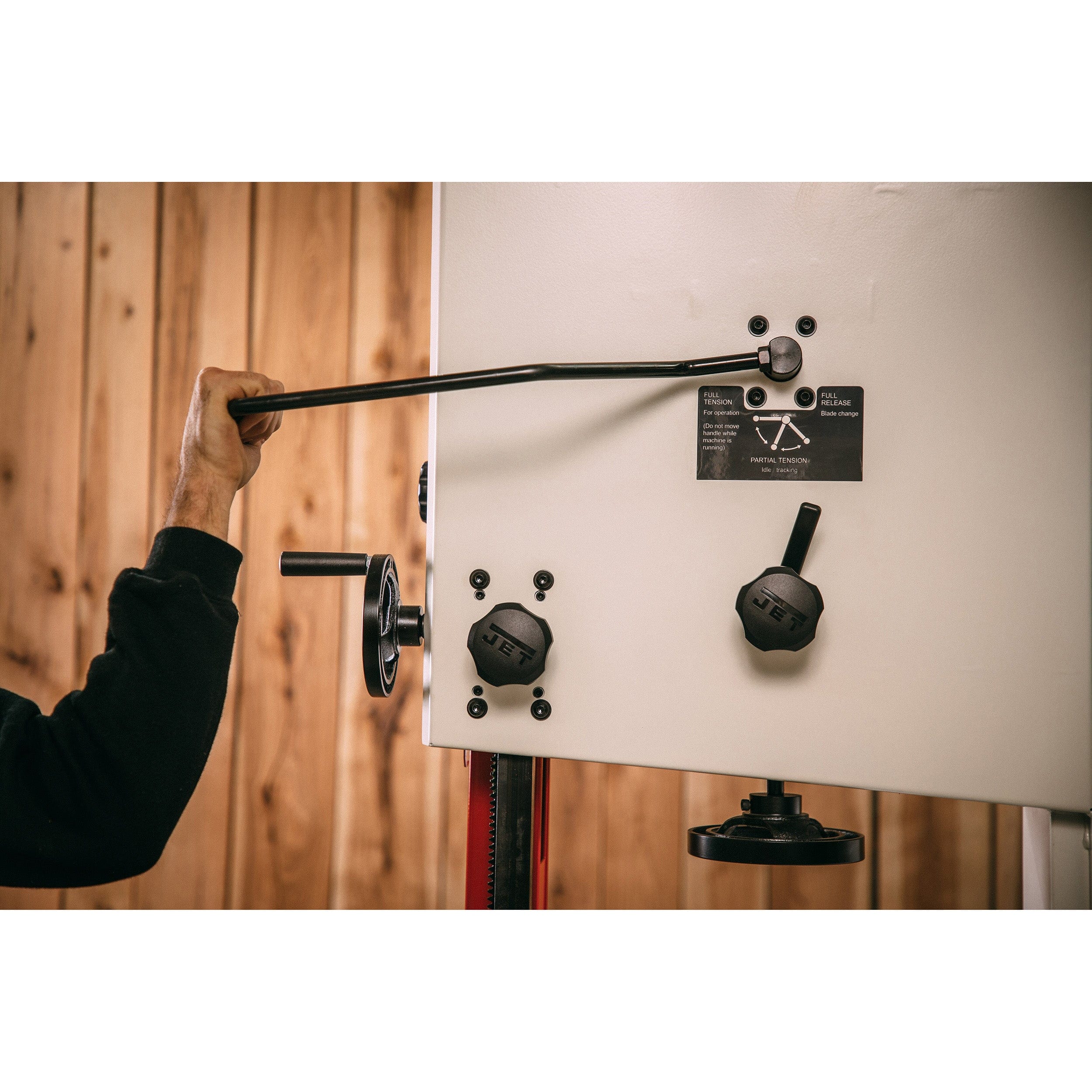

• Heavy duty tensioning with quick release features three settings: full tension, partial tension and full release

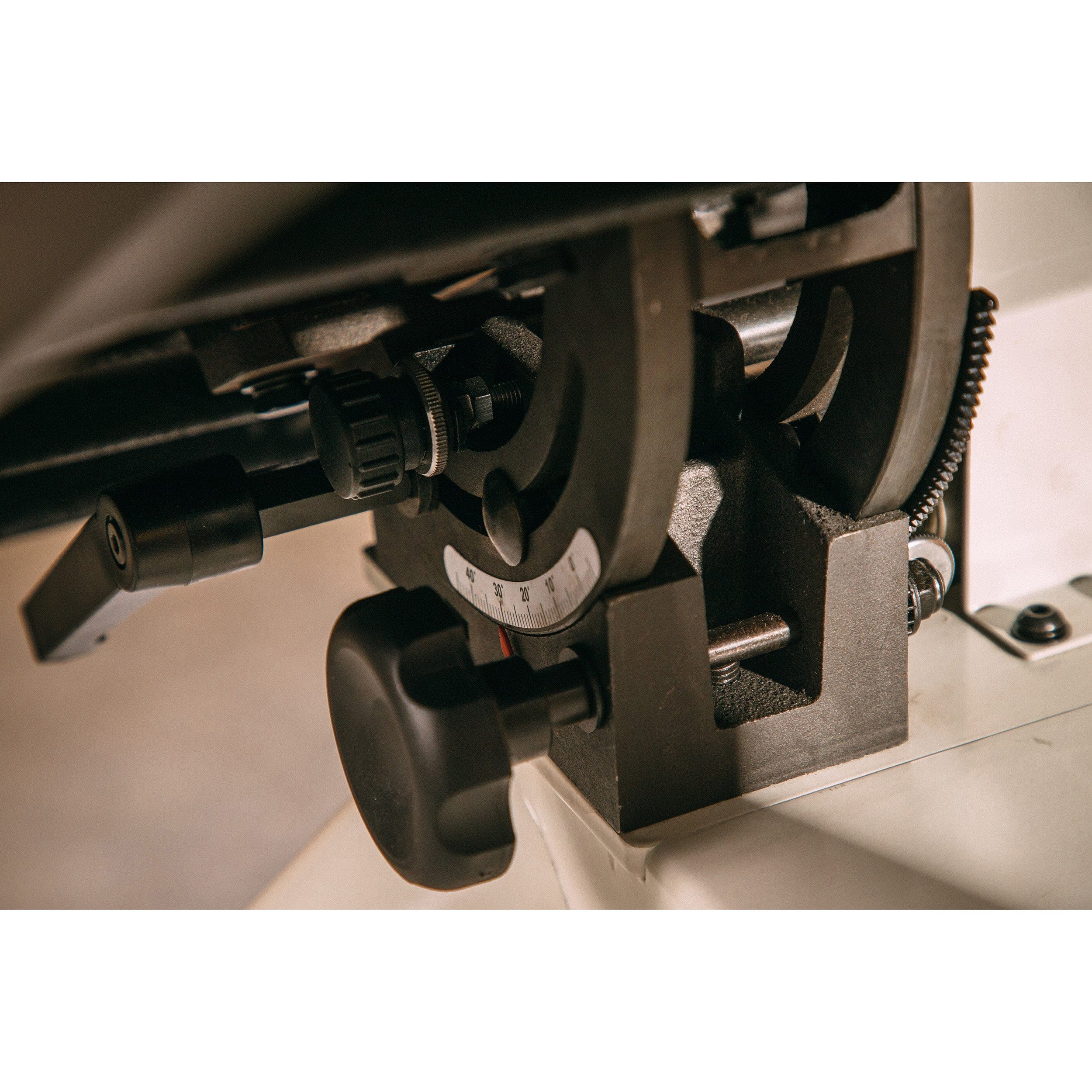

• Cast iron trunnion for maximum support and stability
• Slotted table allows for front blade removal
• Cast iron handwheels and ergonomically designed knobs make adjustments smooth and easy
• Round table insert features leveling screws for precise adjustment
• Conveniently located dual 4 dust collection ports catch dust and chips at the source
• Table tilts 5° left and 45° right to accommodate a wide variety of cuts

• Motor Type: TEFC (totally-enclosed fan-cooled), induction, capacitor start
• Motor Power: 3 HP
• Motor Amps: 12A
• Motor Phase: 1 Phase
• Voltage: 230V
• Cycle: 60 Hz
• Recommended Circuit Size (Amps): 30A
• Wheel Diameter: 20-1/4″
• Cutting Capacity Height: 16″
• Cutting Capacity Width: 20″
• Maximum Rip – Left of Blade w/ Fence: 18-1/2″
• Maximum Rip – Left of Blade w/ Fence: 4-1/2″
• Blade Length: 158″
• Maximum Blade Width: 1-1/2″
• Minimum Blade Width: 1/8″
• Blade Speed: 2530/4850 SFPM
• Table Size (L x W x T): 27-1/4 x 20 x 1-3/4
• Table Tilt: 5° left, 45° right
• Table Height from Floor: 37″
• Overall Dimensions (L x W x H): 37″ x 33-1/8″ x 88″
• Resaw / Rip Fence Dimensions (L x W x H): 22-1/2″ x 1-3/4″ x 6″
• Dust Port Outside Diameter: 4″ (x2)
• Dust Collection Minimum CFM Required: 400 CFM
• Net Weight: 544 lbs.

• (1) Jet® 20″ Woodworking Bandsaw – 3 HP 1 Ph 230V – JWBS-20-3
• (1) Rip Fence/Resaw Fence
• (1) Miter Gauge
• (1) Bandsaw Blade – Hook – 158″ x 1″ x 0.035″ – 3 TPI
