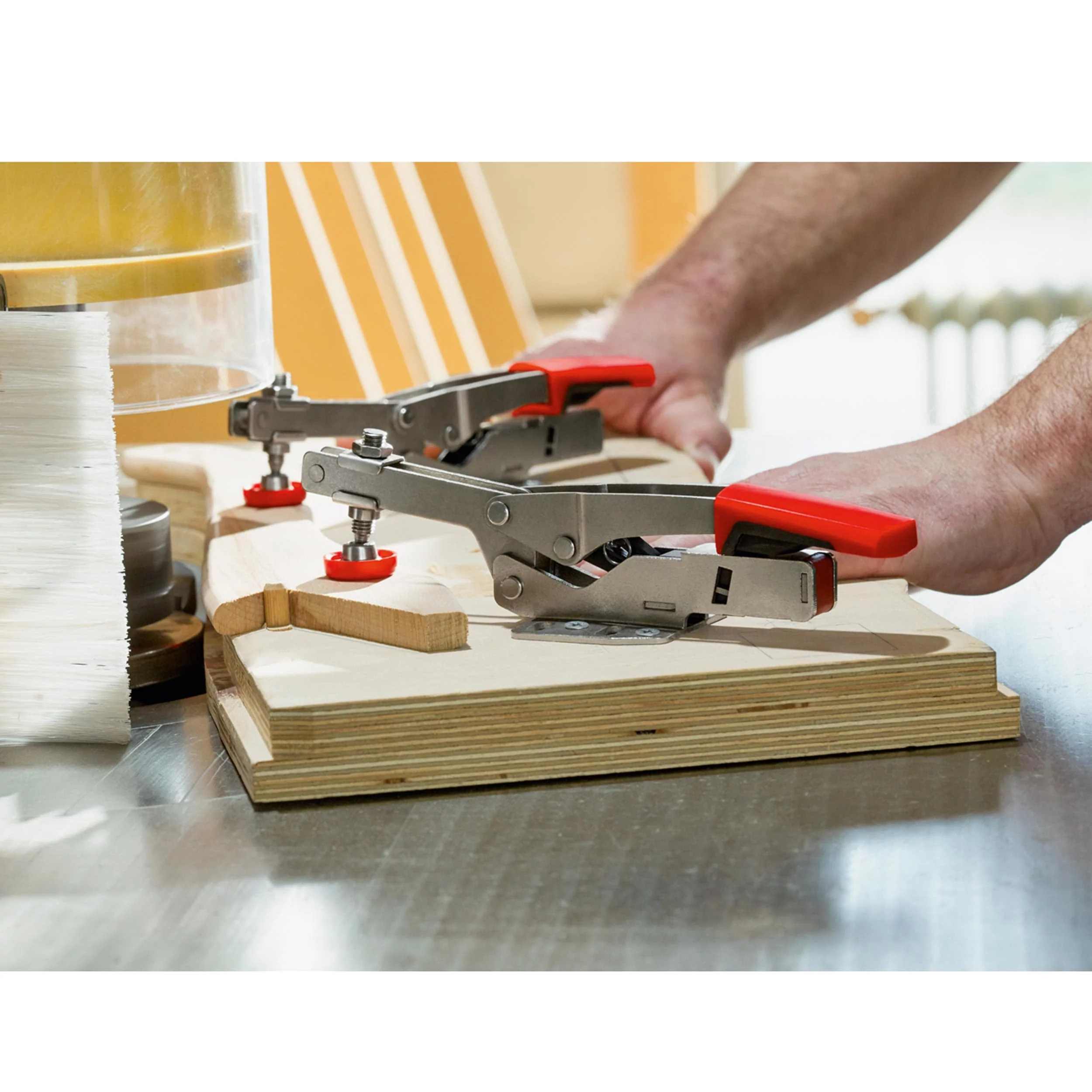

Auto-Adjust Horizontal Toggle Clamp – Low

The BESSEY® Auto-Adjust Toggle Clamp automatically adjusts to variations in workpiece dimensions while maintaining constant clamping force with a max vertical opening distance of 2″. No more time-consuming manual adjustment of the spindle to maintain a safe and correct clamping force. The removable non-marring plastic cap is included on the 7/8″ diameter pads. The integrated clamping force adjustment screw can be used to create an actually applied clamping force from 25 to 550 lb (max holding capacity 700 lb). One BESSEY Auto-Adjust Toggle Clamp can replace a range of competitive clamps. The large flanged baseplate is designed for use with 1/4″ or M6 fasteners.

Features:

• Eliminates time-consuming manual adjustment of the spindle to maintain a safe and correct clamping force
• Clamping force adjustable from 25-550 lb (700 pounds max)
• Large flanged baseplate
• Comfort grip handle

Specifications:

• Model: STC-HH50
• Clamping Force: 25 to 550 lb
• Maximum Holding Capacity: 700 lb
• Maximum Vertical Opening Distance: 2″
• Baseplate Dimensions: 2-1/4″ x 2-1/2″
• Baseplate is designed for use with 1/4″ or M6 fasteners

What’s Included:

• (1) Bessey – Auto-Adjust Horizontal Toggle Clamp – Low
