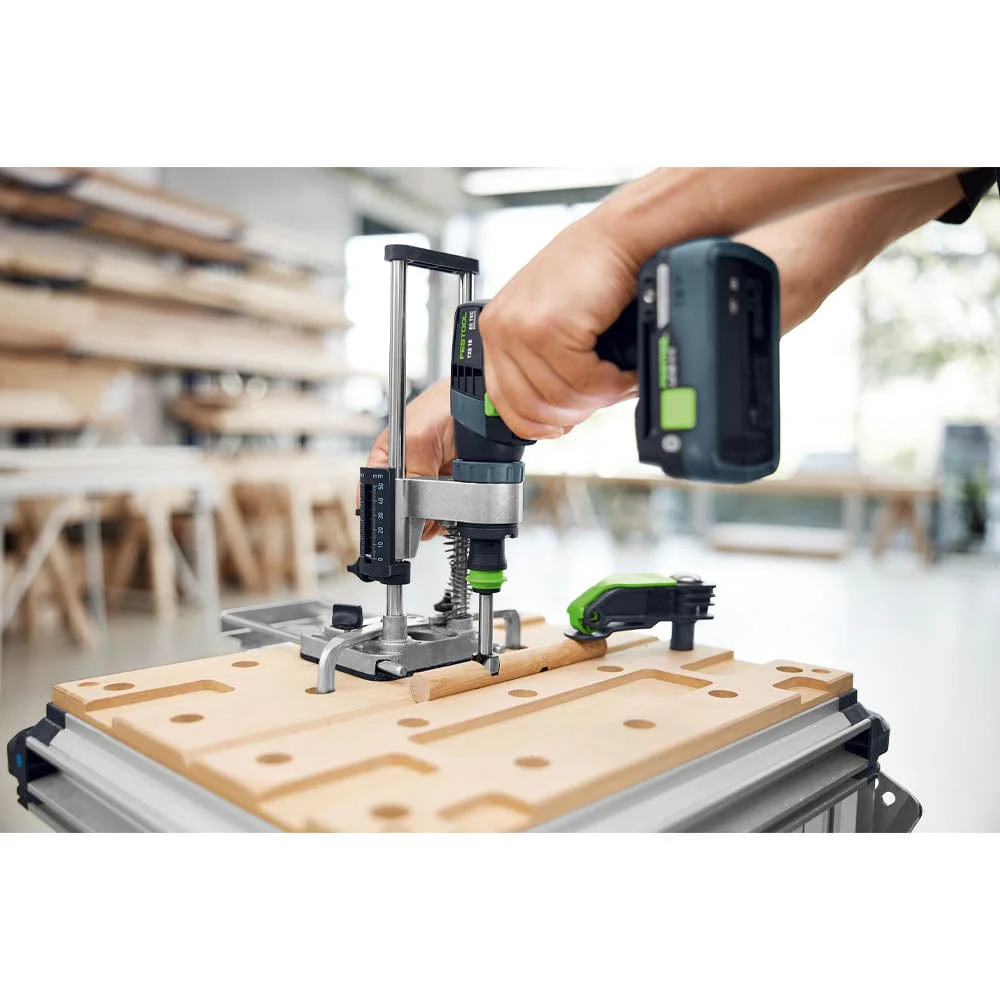

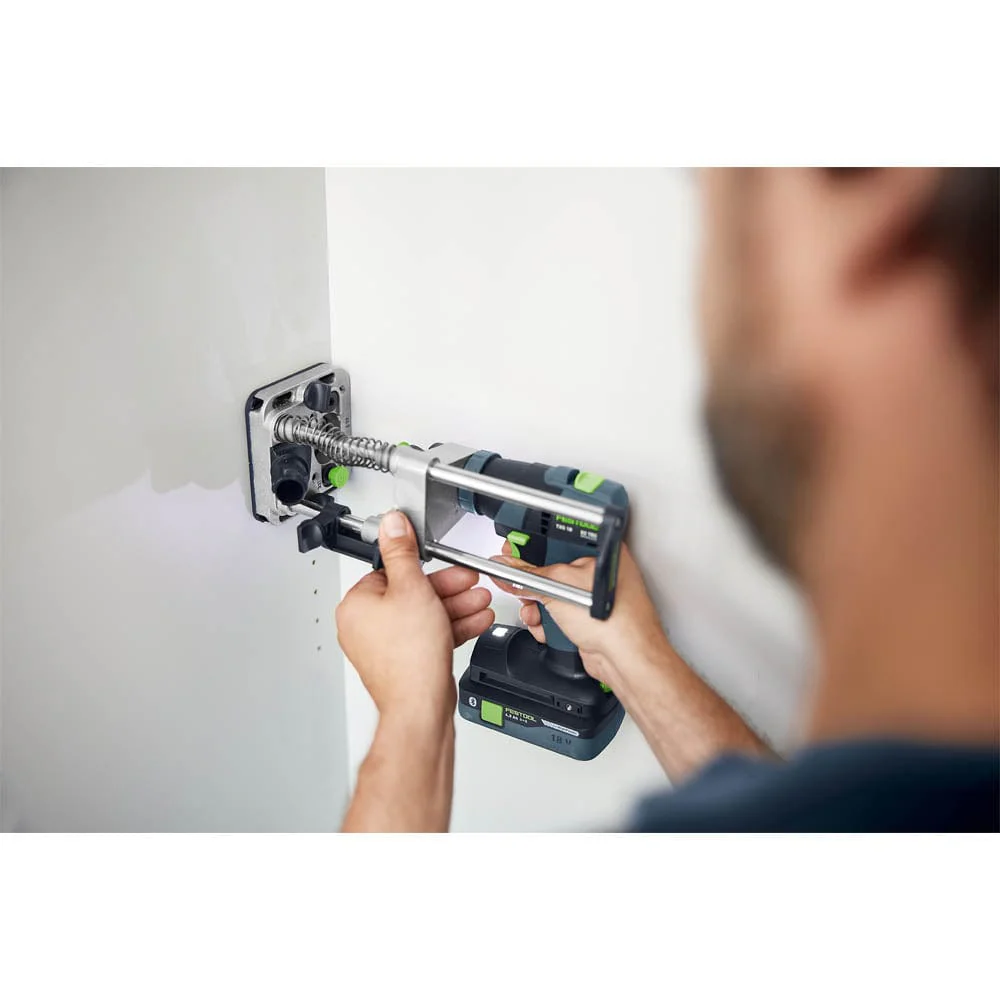

Designed for versatility, the MB 40 makes it easy to drill vertical holes, end face holes, and even series of holes with consistent depth and alignment. Its adjustable stops and depth control give you total command over your work.
Need a clear view of your drilling point? Just connect your dust extractor directly to the base plate for a cleaner, more precise experience.
Compatible with Festool® cordless drills, the MB 40 expands your capabilities across wood, metal, and plastic. It’s the ideal FastFix attachment for anyone who demands accuracy, flexibility, and performance.
Features:
- Precise: Built to be robust and stable – for exact holes.
- Exact depth adjustment: With zero position and readable drilling depth up to 50 mm. Display in mm and inches.

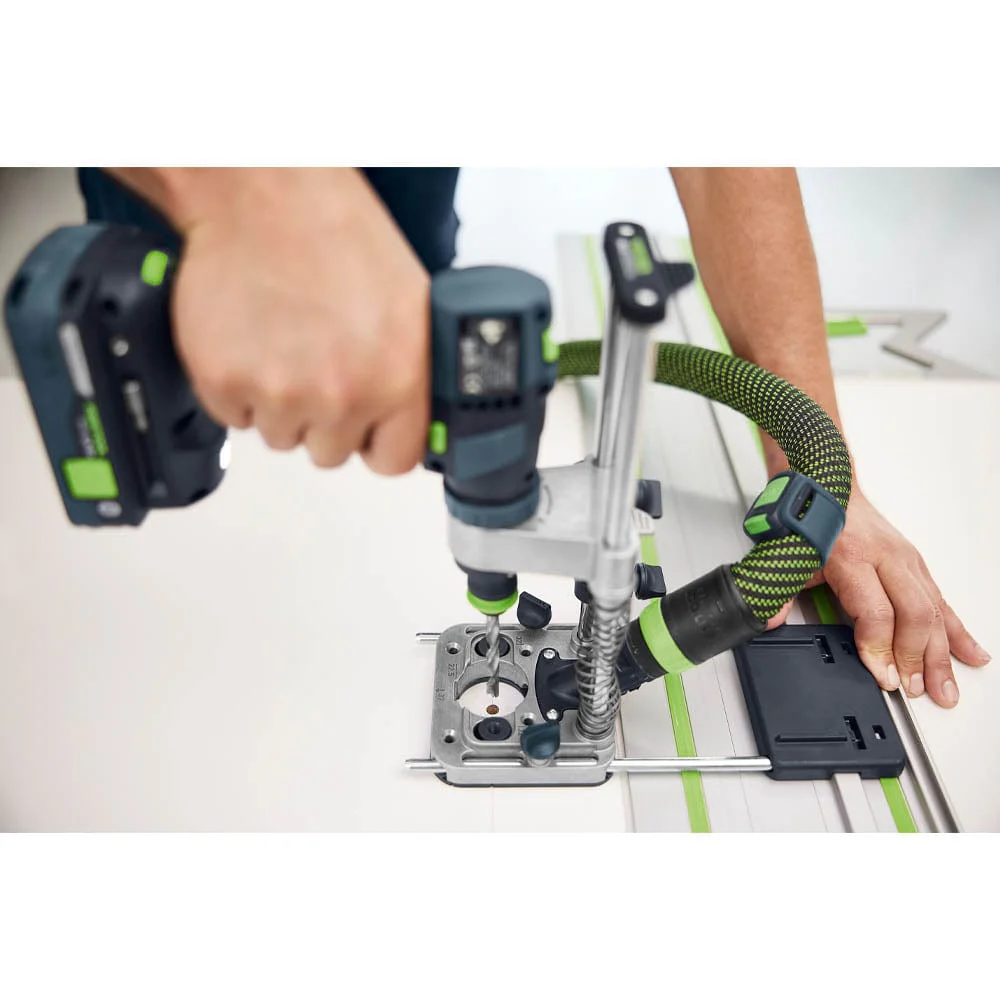

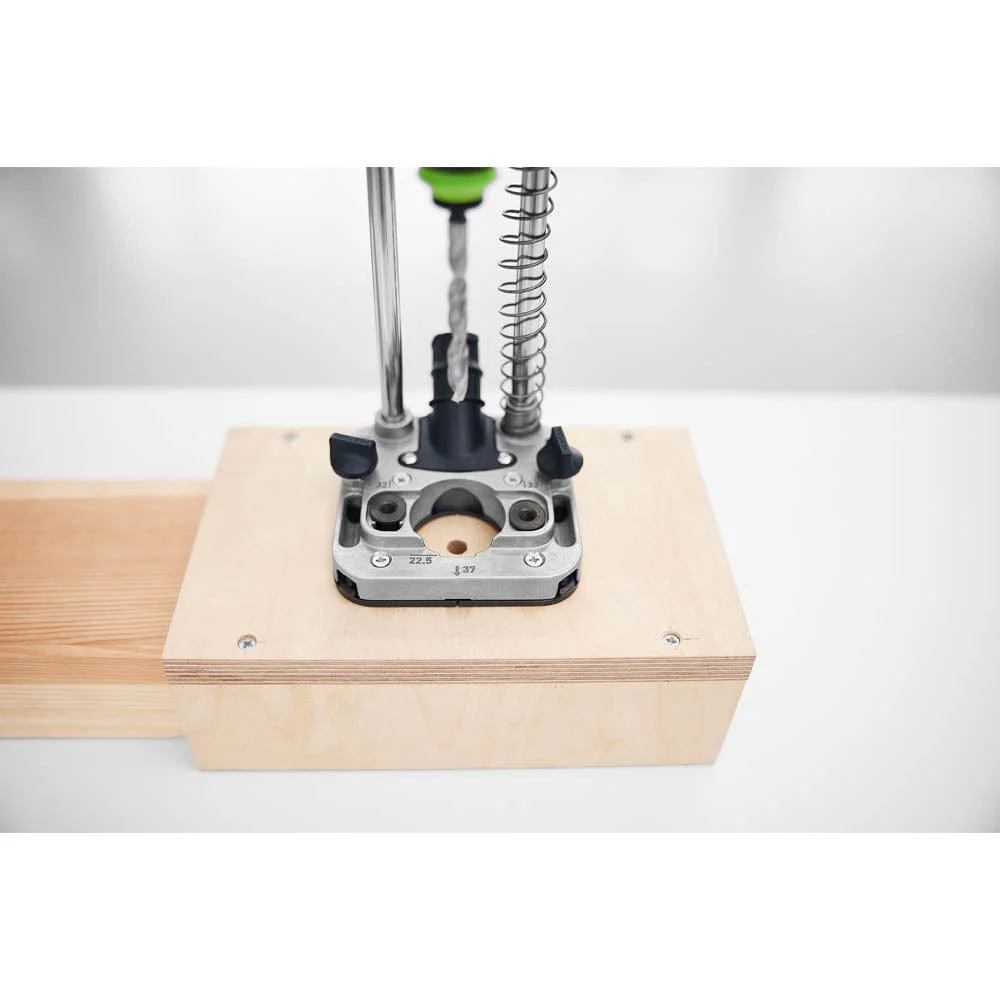

- Versatile accessories: With parallel side fence and stop for end face holes, for drilling holes exactly and with repeat accuracy in panel edges, or guide rail adapter for drilling in long and wide workpieces.
- Exceptional: With hole series function for holes in the 32-type system.
- Compatible: The tool chuck can be fitted quickly and without tools. The CENTROTEC chuck also enables quick insertion and replacement of drilling tools.
- Integrated: Chip extraction for extractors from dust class M and hose diameter D 27.
- Easy positioning: Markings on the base plate simplify exact alignment on the workpiece.
- Sturdy: Rubberised base for precise alignment without slipping.
- Clearly organised: Compact and cleverly packed in the Systainer³.
Specifications:
- Holder: FastFix
- Max. drilling diameter for softwood (Forstner Drill Bit): 1-9/16″
- Max. drilling diameter for softwood (auger bit): 5/8″
- BASE: 4-3/8″ x 4-1/2″
- Height: 12-1/4″
- Setting range of depth stop: 0 – 2″
- Max. screw diameter (templates/fixtures): 5/32″
- Stroke with depth stop, incl. spring: 8″
- Dust extraction connection dia.: 1-1/16″
- Weight: 3.1 lbs

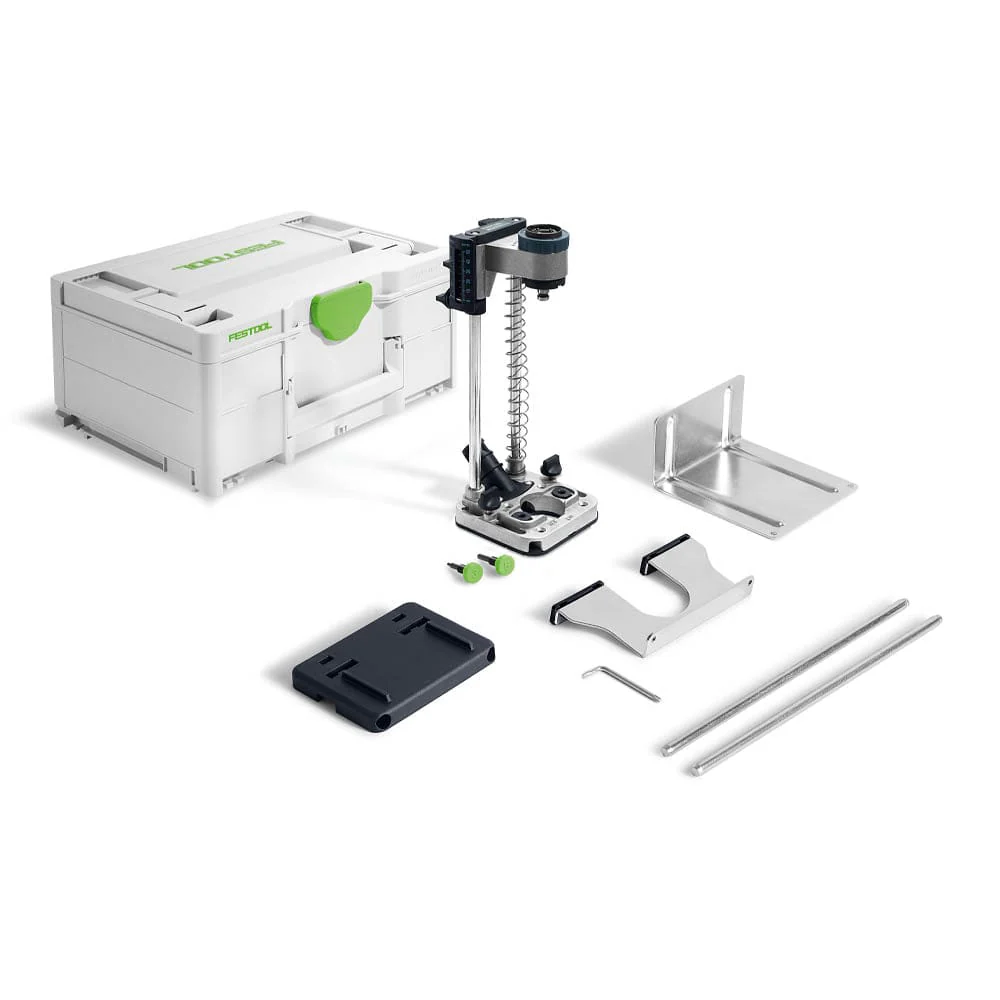

What’s Included:
- FSA-MB 40 guide rail adapter
- Parallel side fence incl. stop for end face holes (PA-MB 40)
- Hole series pin 5 mm; hole series pin 3 mm
- TX 15 key
- Systainer SYS3 M 187
