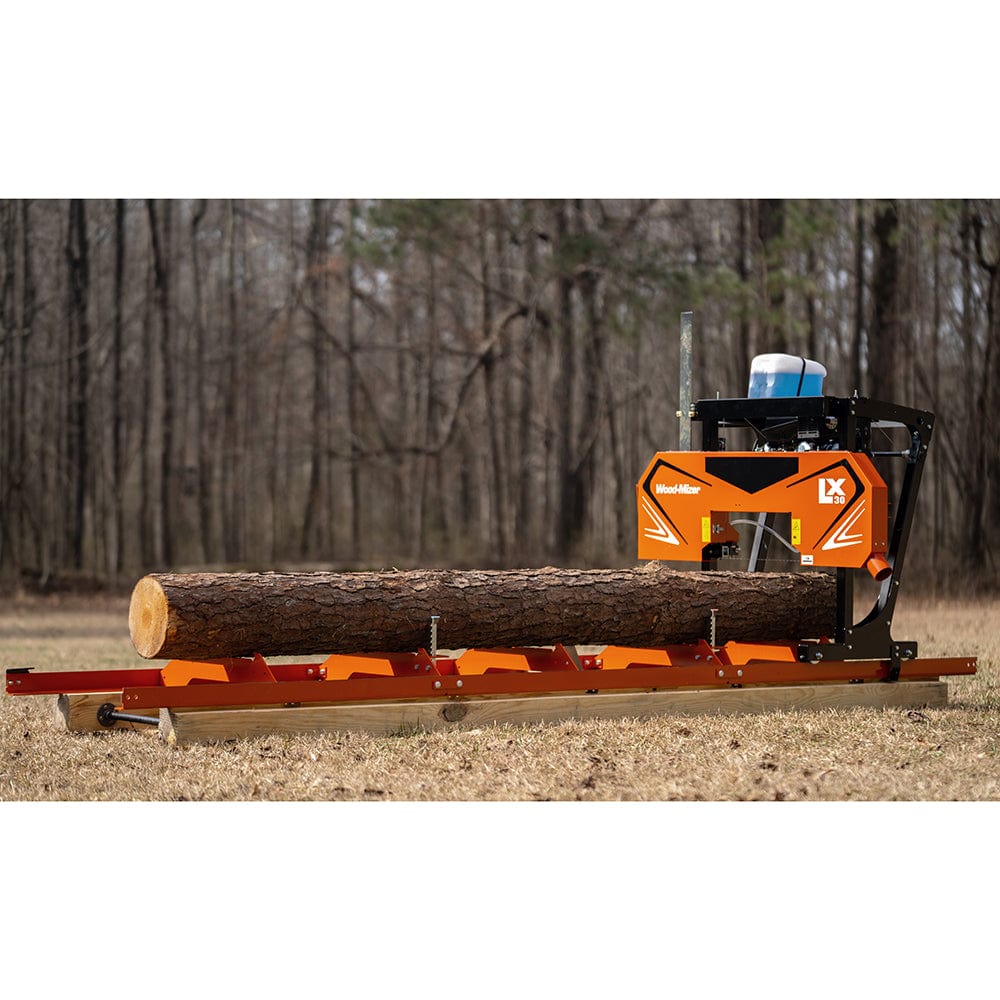

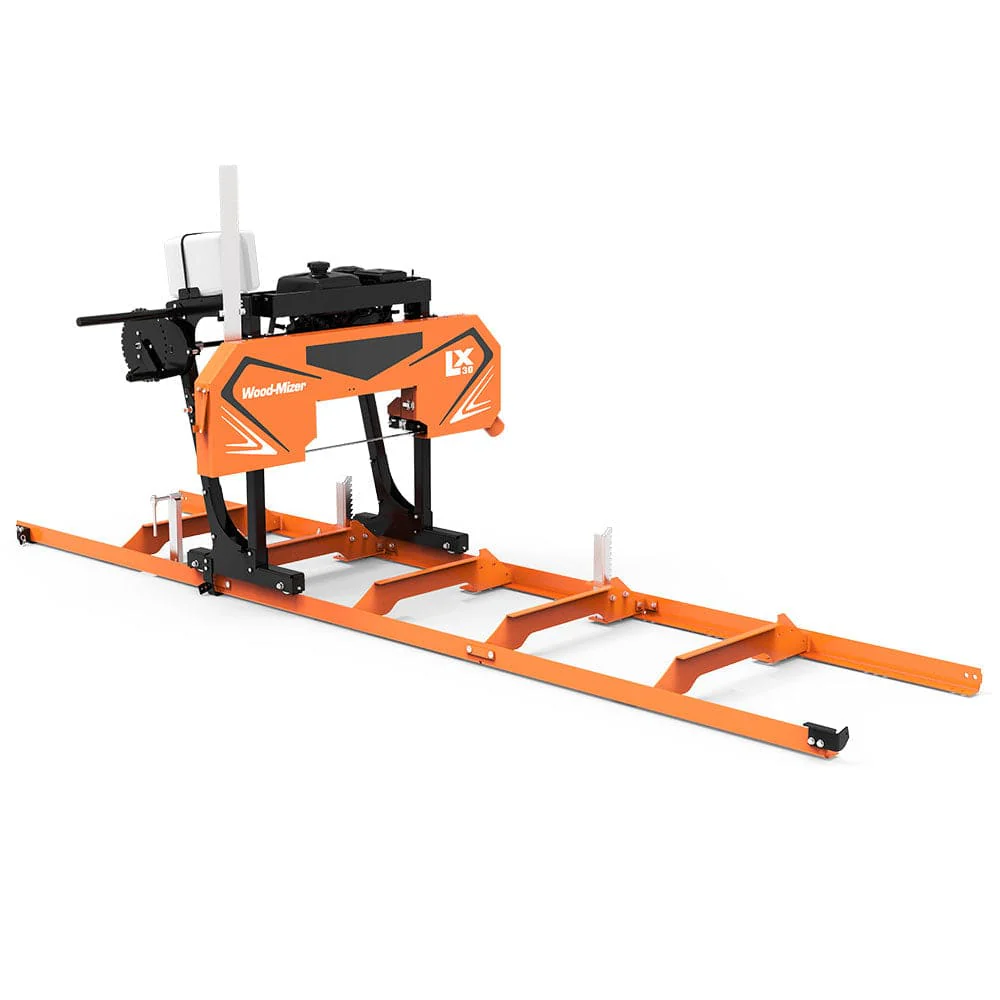

Wood-Mizer LX30 9.5HP Sawmill

The LX30 portable sawmill combines sawyer-friendly features with an entry-level price making it an exceptional value for anyone who wants the freedom of sawing their own boards and slabs! Saw softwood and hardwood logs up to 22” in diameter with a 21-1/2” width of cut and a 7-1/2” depth of cut – enough capacity for the hobby sawyer. Additional features including a reliable Command Pro 9.5HP gas engine, rev & run blade action, high-performance blade guide rollers, quick up/down sawhead, and quick-set log handling provide a sawyer-friendly sawing experience. With the LX30 portable sawmill, owning a Wood-Mizer is now more affordable than ever!

• Saw 22″ Diameter Logs
• Reliable power with 9.5HP Command Pro gas engine
• Durable Sawmill Bed
• Quick Sawhead Up/Down
• Rev & Run Blade Action

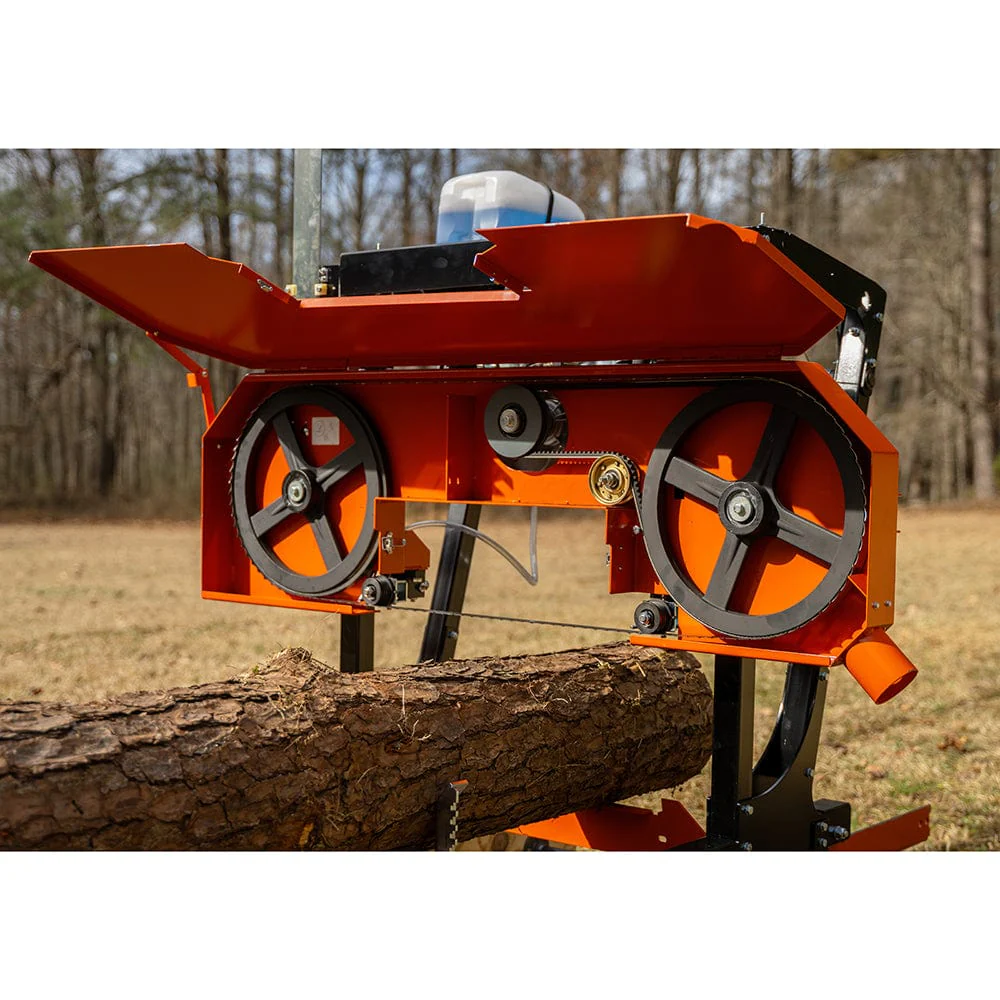

• High-Performance Blade Guide Rollers
• Sawmill Head & Frame Constructed of Premium Steel
• Quick-Set Log Clamp
• Quick-Lock/Built-In Side Supports
• Precision Thin-Kerf Sawing
• Easy Shipping and Assembly
• Premium Quality Manufacturing

• 9.5 HP Command Pro
• Max Width of Cut – 21.5″ (55 cm)
• Max Log Diameter – 22″ (56 cm)
• Max Cant Width – 19.75 (50 cm)
• Productin Rate – up to 140 bd ft/hr
• Max Depth of Cut – 7.4″ (19 cm)
• Max Log Length – 10’10” (3.3m)
• Max Log Length (with extensions) – Unlimited
• Log weight – 1,200 lbs ( 544kg)
• Blade Length 126″ (3.2m)
• Blade Guide Styles – Roller Guides
• Blade Thickness – .035″ (.089mm) or .042″ (1.07mm)
• Blade Width – 1.25″ (32mm)
• Blade Guide Size – 1.25 (32mm)
• Operator Locaton – Walk Along Push Feed
• Setworks – N/A
• Head Forward/Reverse – Push Feed

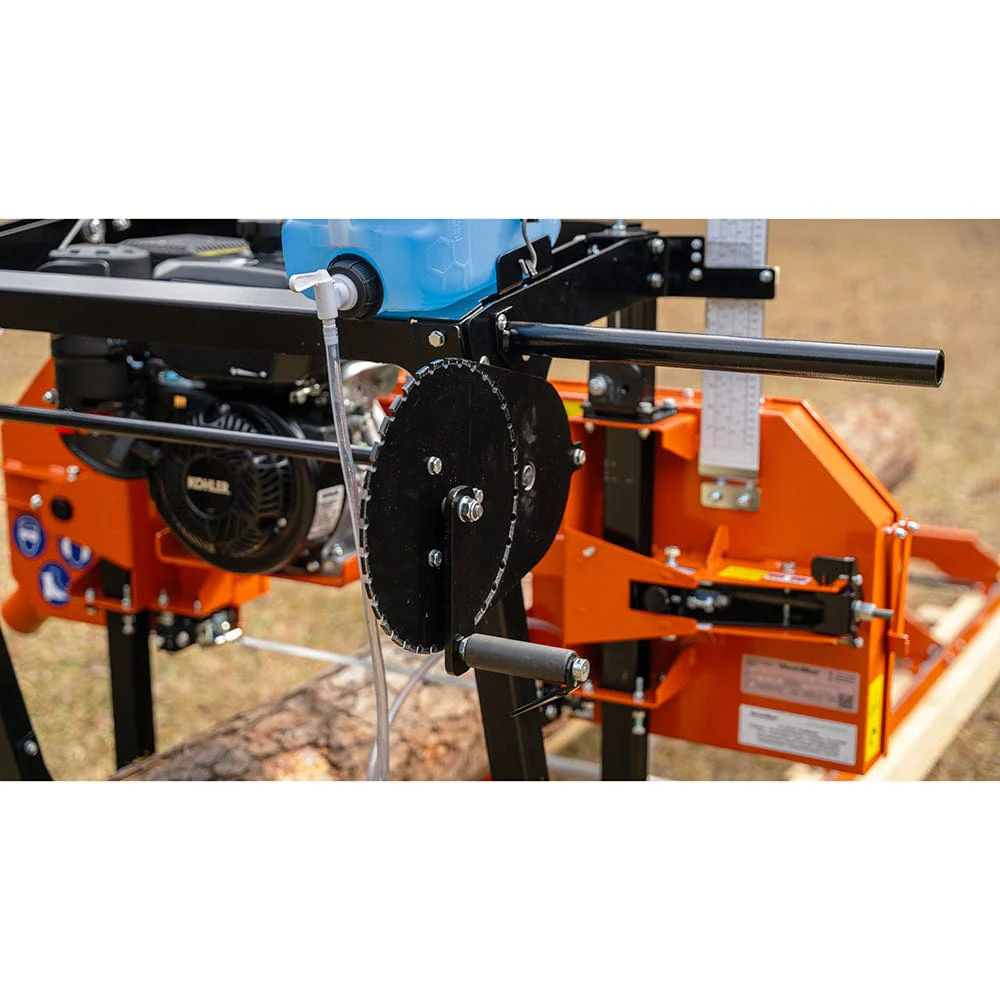

• Head Up/Down – Hand Crank
• Blade Engagement – Centrifugal Clutch
• Log Turning – Manual
• Log Loading – Manual
• Trailer Package – N/A
• Log Clamping – 1 Adjustable Log Clamp
• Additional Bed Options – 4′ (1.2m) Bed Extensions

• 9.5 HP Command Pro Gas Engine
• Three Bed Sections
• One Quick-Set Log Clamp
• Two Quick-Lock Side Supports
• High-Performance Blade Guide Rollers
• Graveity-Fed Blade Lubrication System
• 4″ Diameter Sawdust Port

See additional document on Product Page

Limited Warranty – see additional document on product page
